Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of double cone powder mixer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized double cone powder mixer from our factory.
Features
Gentle Mixing
The mixer relies mainly on gravity tumbling rather than high-speed stirring or strong shear. This helps reduce particle breakage and makes it suitable for fragile powders and crystalline materials.
Easy Cleaning
Material-contact parts are available in 304 or 316L stainless steel. The polished chamber has a smooth interior with few areas for material buildup, making cleaning and routine maintenance straightforward. A sealed butterfly valve can be used for controlled discharge.
Flexible Configuration
The mixer can be equipped with optional systems according to the production process. Vacuum feeding supports enclosed material loading, while a jacket can be added for heating, cooling, or drying. A spray system is also available for liquid addition and wet mixing.
Low Maintenance
The simple mechanical structure contains relatively few wearing parts, helping reduce maintenance requirements and operating costs.
Suitable for General Materials
The mixer can achieve mixing uniformity of up to 98%, depending on material characteristics and process conditions. A filling rate of around 30–60% is generally suitable for free-flowing powders and granules.
For materials with large differences in density or particle size, or applications requiring very high mixing uniformity, a 3D Mixer may be more suitable.
Working Principle

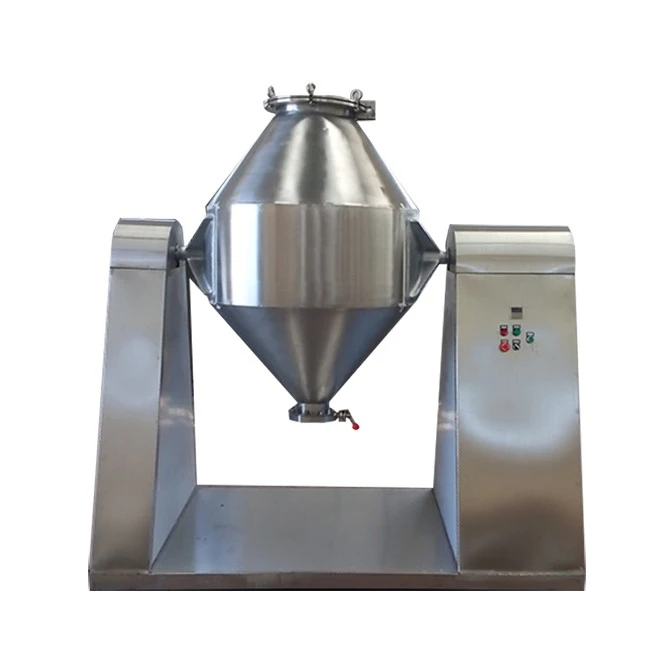

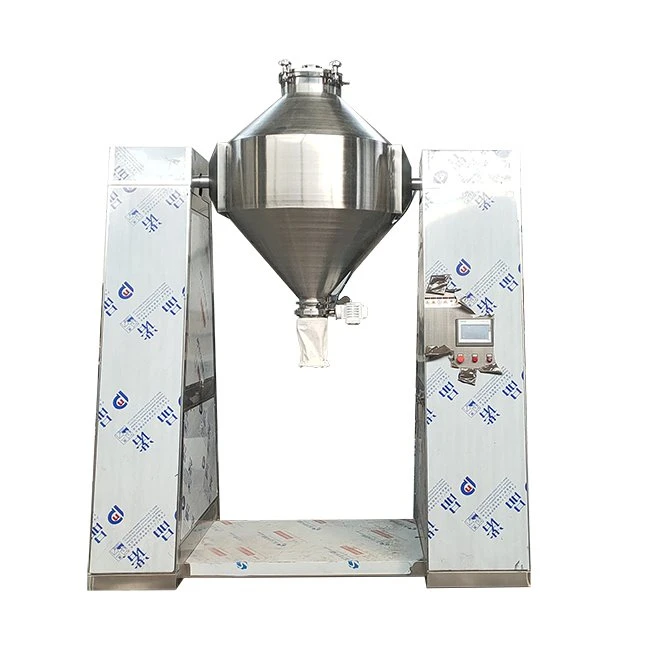

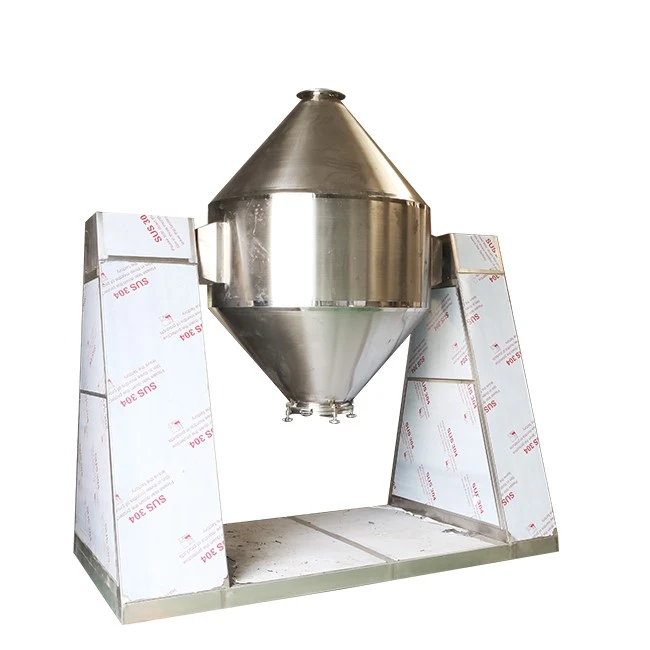

The double-cone chamber rotates around a horizontal axis. As it turns, materials are lifted, then fall and spread under gravity. This repeated movement causes the material to separate and recombine, gradually distributing particles throughout the chamber.
Internal baffles can be added to improve dispersion. During tumbling, the material passes around the baffles, helping break up small agglomerations and improving the overall blend.
The process uses gentle mechanical movement without high-speed agitation, providing a practical balance between mixing performance and material protection.
Applications
The Double Cone Mixer is suitable for:
- Pharmaceutical powders and granules
- Food ingredients
- Fine chemicals
- Electronic materials
- Other free-flowing dry products
Its simple construction, gentle mixing action, and flexible options make it a practical solution for routine batch mixing.
Technical Specifications
Specifications may vary between different manufacturers and models. The following are common reference ranges:
|
Design volume (L) |
Maximum mixing capacity (L) |
Motor power (KW) |
Spindle speed (RPM) |
|
20 |
11 |
0.55 |
0 -15 |
|
100 |
60 |
0.75 |
0-13 |
|
300 |
180 |
2.2 |
0-12 |
|
600 |
360 |
3.7 |
0-12 |
|
1000 |
600 |
5.5 |
0-11 |
|
2000 |
1200 |
7.5 |
0-10 |
|
3000 |
1500 |
11 |
0-9 |
|
4000 |
2000 |
15 |
0-8 |
Note: The above data is compiled from various manufacturers; when selecting a specific model, please confirm with the supplier based on the material's specific gravity and properties.
|
Feature Comparison |
3D Mixer |
V-type mixer |
Double cone mixer |
|
Mode of exercise |
Three-dimensional composite motion (translation + rotation + rocking) |
Two-dimensional rotation (V-shaped cylinder asymmetric rotation) |
Two-dimensional rotation (double-conical cylinder rotation) |
|
Mixture homogeneity |
≥ 99.9% |
about98% |
About 98% |
|
Coefficient |
80% - 90% |
30% - 50% |
30% - 60% |
|
Material Effects |
No centrifugal force, no stratification |
Provides good material protection and is free from intense mechanical compression. |
Provides excellent material protection, with virtually no shear or fragmentation. |
|
Structural complexity |
More complex; highest price. |
Simple structure and excellent cost-performance ratio |
Simple structure, affordable price |
|
Applicable scene |
Requires extremely high uniformity,Materials with significant specific gravity differences |
Materials with good flow properties and those requiring high particle integrity |
Processes involving highly fluidizable powders, those requiring high particle protection, or those necessitating heating or drying. |
Comparison Summary of Three Types of Mixers
