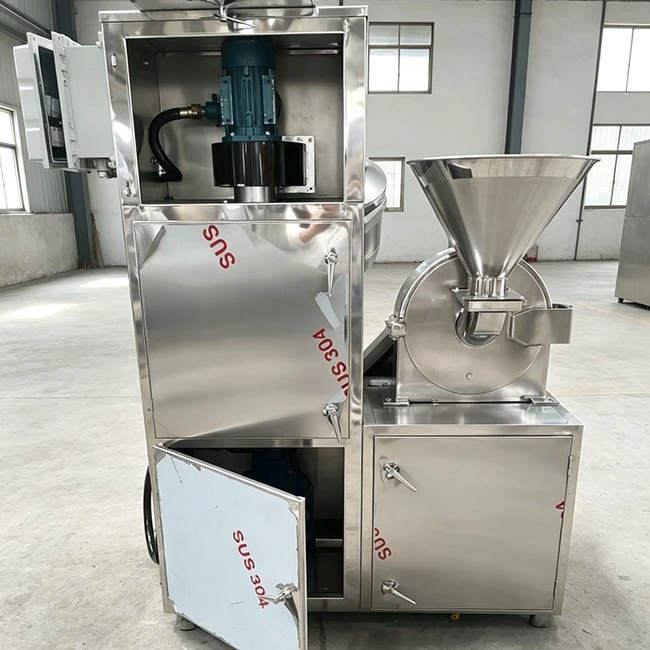

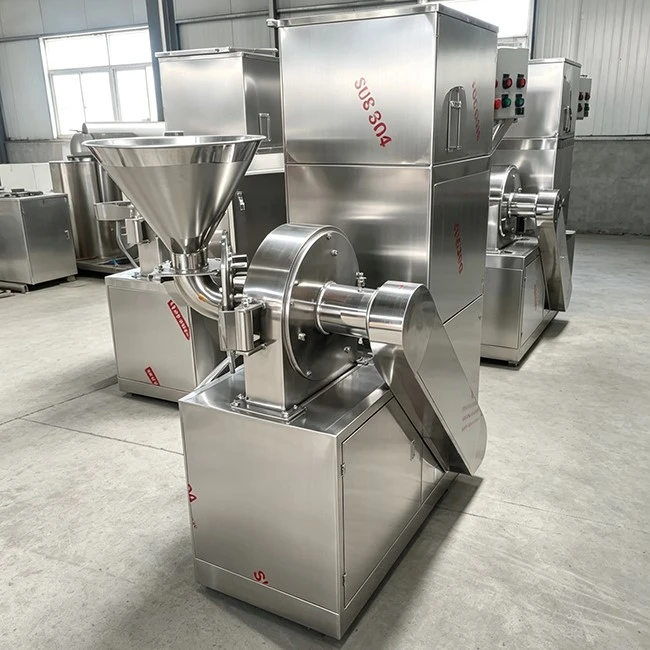

Gear Disc Crusher

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of gear disc crusher in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized gear disc crusher from our factory.

Working Principle



The crushing core consists of two key toothed components. The movable toothed disc is fixed on the main shaft and runs at high speed during operation, while the outer toothed ring is firmly mounted on the inner wall of the crushing chamber and kept static.

After raw materials enter the crushing chamber from the feeding port, they quickly enter the high-speed operating area. Materials are repeatedly impacted, sheared and rubbed between the dynamic and static tooth structures until reaching the qualified particle size. Driven by internal circulating airflow, crushed fine powder moves toward the screen mesh. Qualified particles pass through the screen and discharge out of the Gear disc crusher, while oversized particles remain in the chamber for continuous secondary crushing.

Users can replace screen meshes of different specifications to adjust finished powder fineness according to actual production needs. For conventional processing scenarios, the adjustable particle size range is stably maintained between 10 mesh and 120 mesh.

Features



Wide Adaptability for Conventional Materials This pulverizer supports stable crushing of various low and medium hardness raw materials, including root, stem and leaf Chinese medicinal herbs, grains, condiments and general chemical raw materials. Material hardness, moisture content and physical characteristics need to be evaluated in advance to match the most suitable processing scheme.

Sanitary Stainless Steel Contact Structure All parts that come into direct contact with materials adopt 304 stainless steel configuration. The polished inner cavity effectively reduces powder adhesion and residue, simplifying daily cleaning work. This structural design fully meets the hygienic production requirements of food, pharmaceutical and fine chemical industries.

Optional Water Cooling Configuration High-speed friction crushing will generate continuous heat during long-time operation. For heat-sensitive materials that are prone to deterioration and discoloration from high temperature, a customized water-cooling jacket can be installed on the crushing chamber. Circulating cooling water takes away accumulated heat in real time, stabilizing material properties and ensuring consistent finished product quality.

Convenient Daily Maintenance The Gear disc crusher adopts a simplified mechanical structure with fewer complex vulnerable parts. Daily maintenance work is intuitive and efficient, mainly including regular inspection of toothed discs and screens, chamber cleaning, movable parts lubrication and timely replacement of worn components.

The following lists common models and technical specifications for this series of equipment, which can serve as a reference for selection:

Note: The above data is compiled from multiple manufacturers; actual production capacity may vary depending on material properties (such

Despite the name of Gear disc crusher, this equipment does not support all material types with full compatibility. It has clear usage limitations in actual industrial production.

Standard models cannot process flammable and explosive materials; professional certified explosion-proof configuration is mandatory for such special materials. Excessively hard raw materials will accelerate wear of toothed disc components, while high-viscosity materials easily cause internal accumulation and screen blockage, both not applicable for this equipment.

Strict pre-start inspection is required. Workers must remove all metal fragments and hard foreign objects inside the crushing chamber to avoid equipment damage. It is also necessary to confirm the motor rotation direction is consistent with the Gear disc crusher marked direction before formal operation.

Toothed discs and screens are core wearing parts. Their wear degree needs regular inspection, especially when processing abrasive materials, to ensure stable crushing accuracy and equipment safety.

This universal pulverizer is mostly arranged in the front section of powder production lines, serving as pre-processing equipment for mixers and other downstream powder processing devices.

In actual production, large-particle raw materials are firstly crushed into standard fine powder by this equipment, then delivered to V-type mixers, 3D mixers and other mixing equipment for subsequent blending processing.

For production lines with strict dust control and environmental protection standards, the pulverizer discharge port can be connected with dust-free feeding stations or vacuum feeders through closed pipelines. It replaces traditional manual material transfer, realizing fully enclosed automatic conveying and continuous crushing-mixing linkage production. This configuration effectively reduces manual intervention, avoids dust overflow and improves overall production continuity and safety.
