Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of electric heating vacuum drying oven in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized electric heating vacuum drying oven from our factory.
Product Structure

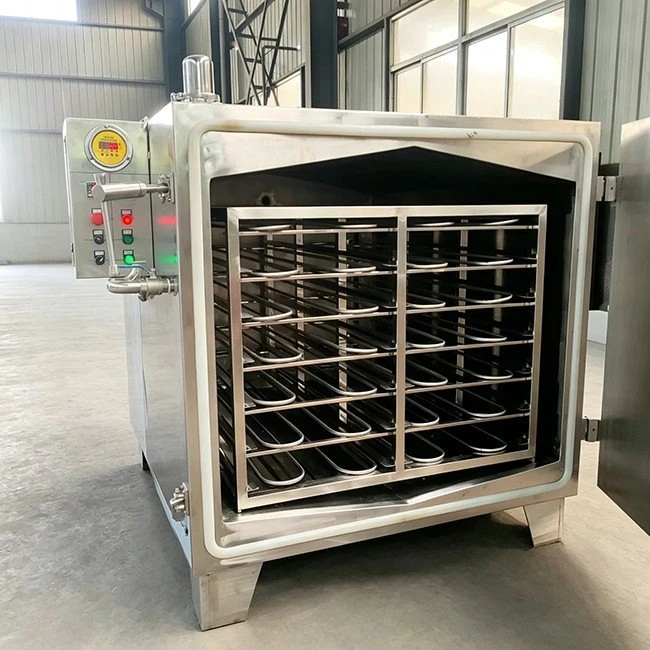

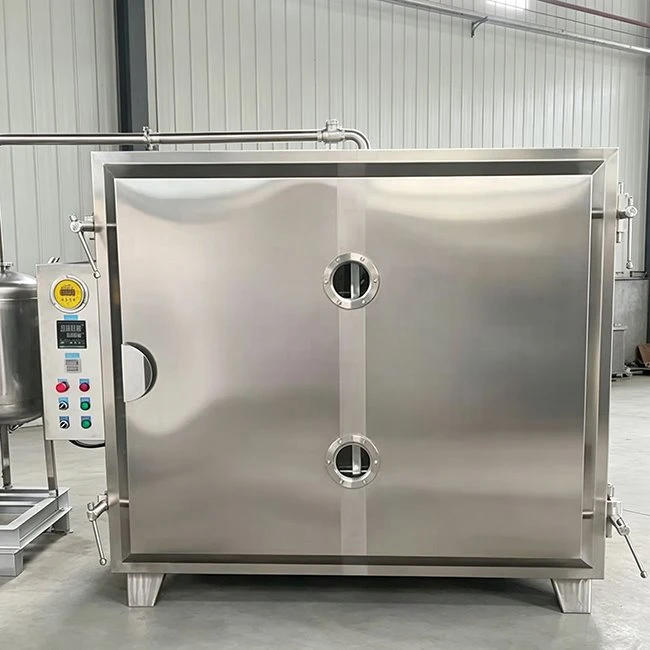

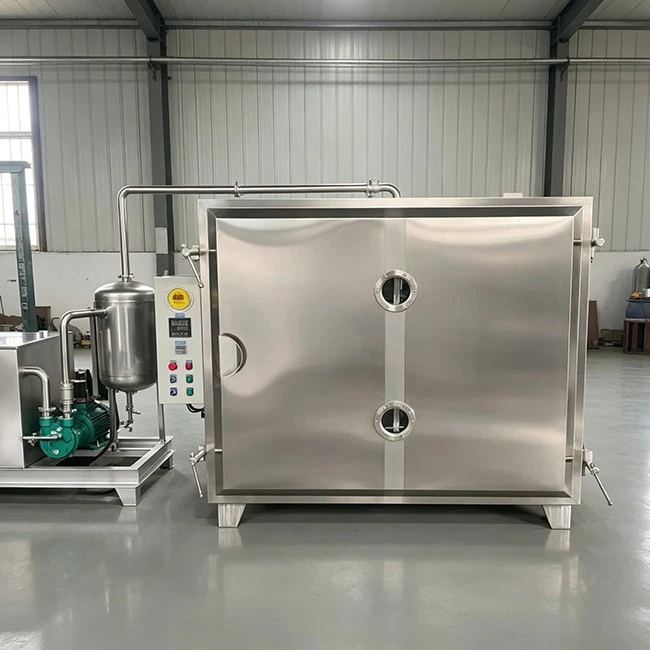

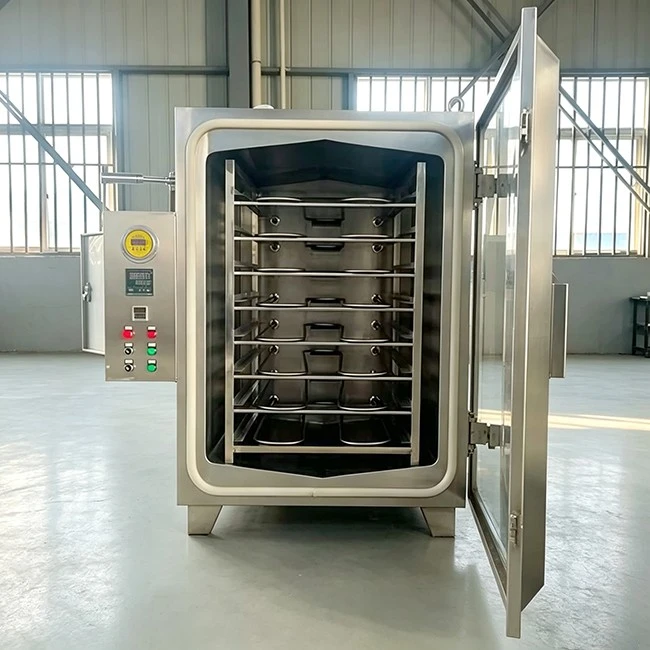

The Electric heating vacuum drying oven mainly consists of the following parts:
(1) Vacuum oven body and frame structure;
(2) Temperature control system;
(3) Electric heating system;
(4) Vacuum system;
Working Principle
The core technology of the Electric heating vacuum drying oven lies in utilizing the vacuum environment to lower the boiling point of liquids, achieving rapid drying at low temperatures. Under standard atmospheric pressure, water boils at 100℃, but in a vacuum environment, as the internal pressure decreases, the boiling point of water decreases accordingly, allowing moisture evaporation to occur at low temperatures of 30-60℃. The vacuum drying oven operates by combining vacuuming and heating. This characteristic is particularly suitable for drying heat-sensitive, easily decomposed, and easily oxidized substances.
Technical Parameters
- Chamber Dimensions: W1380×D1580×H1700mm (excluding protrusions, subject to final design);
- Chamber Overall Dimensions: W1220×D1380×H1230mm; (8 baking trays, 100mm spacing)
- Operating Temperature Range: Ambient temperature～120℃;
- Heating Rate≥1℃/min;
- Vacuum Degree: 0--0.095mpa (unloaded, non-high-altitude areas and specific vacuum pump);
- Pressure Reduction Time≤15min (atmospheric pressure to 15KPa absolute pressure);
- Stainless Steel Heating Tube: 16kw;
- Surface Temperature≤Ambient temperature +35℃ (excluding the area near the door frame);
- Power Supply/Installation Power: AC380V/50Hz/21Kw (including temperature control, heating, and vacuum systems)
Applications
The Electric heating vacuum drying oven has a wide range of functions and applications, mainly including the following fields: In laboratory sample drying, the vacuum environment can achieve low-temperature drying, especially suitable for heat-sensitive materials such as chemical reagents and biological samples; In powder and raw material drying, it is used for drying treatment in pharmaceutical, chemical and other industries to reduce moisture ; In material heat treatment, the vacuum environment can prevent oxidation and other unnecessary chemical reactions, thereby ensuring the purity and performance of the material; In the food industry, it is used for food dehydration and preservation, and under vacuum conditions, the nutritional components and flavor of the food can be better preserved, extending its shelf life; In the electronics industry, it is used to remove moisture and other volatiles from the surface of electronic components to improve the performance and reliability of the components [10]; In the fields of scientific research and biochemistry, it is widely used in biochemistry, chemical pharmaceuticals, medical and health care, agricultural research, environmental protection and other research and application fields.
