Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of tablet film coating machine in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized tablet film coating machine from our factory.
Main Components
The tablet film coating machine has a compact integrated structure. The coating drum is made of 304 stainless steel with a polished inner surface to reduce tablet scratching and material buildup. A spray system delivers the coating liquid at a controlled rate. A hot air circulation system maintains stable drying conditions and supports uniform film formation. The unit includes an exhaust system and dust collection components. Drum speed, spray flow rate and drying temperature can be adjusted through the control system.
Features
The tablet film coating machine produces a uniform film layer and gives tablets a smooth surface. It provides consistent results from batch to batch. The enclosed chamber helps limit dust escape and improve the use of coating material. Gentle tablet movement helps reduce breakage during coating. Process parameters can be adjusted to suit different coating formulas and production requirements. The control interface is simple to operate, and routine maintenance is straightforward.
Technical Parameters
|
Brand |
Huozao Machinery |
|
Model |

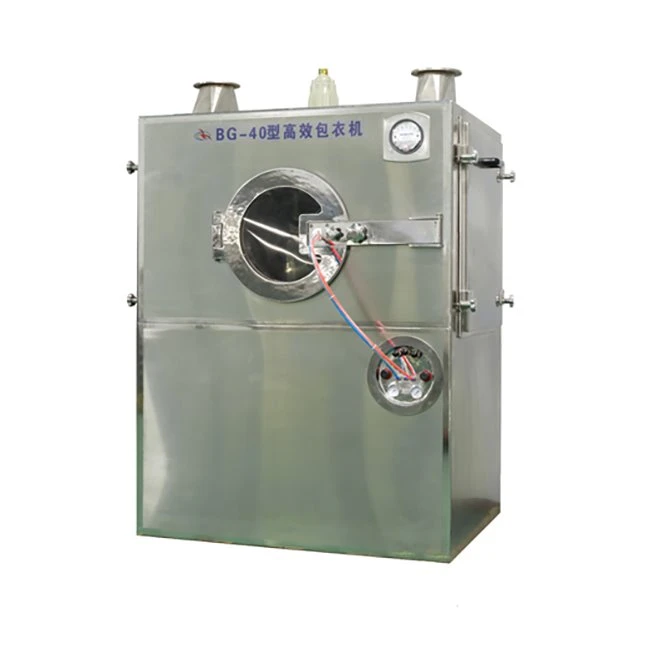

BG-40 |
|
Customization Support |
Yes |
|
Hot Air Flow Rate |
1285 m³/h |
|
Exhaust Fan Flow Rate |
3517 m³/h |
|
Origin |
Nanjing |
|
Overall Protection Rating |
IP54 |
|
Peristaltic Pump Motor Power |
0.18 kW |
|
Core Advantages |
High coating yield, airtight, clean and environmentally friendly, GMP compliant |
|
Effective Drum Volume |
100L |
|
Air Consumption |
≤74 kg/h |
|
Sales Location |
Nationwide |
Working Principle
During operation, tablets tumble continuously inside the enclosed coating drum. The spray system atomizes the film-coating liquid and applies it to the tablet surfaces. Heated air circulates through the drum to remove moisture or solvent from the coating liquid. This helps form the film layer. Dust and solvent vapors are drawn into the exhaust and filtration system during the coating cycle.
Applications
This tablet film coating machine is used in pharmaceutical, dietary supplement and food processing facilities. It can handle thin-film coating, protective coating and color coating for tablets, pills and granular products.
