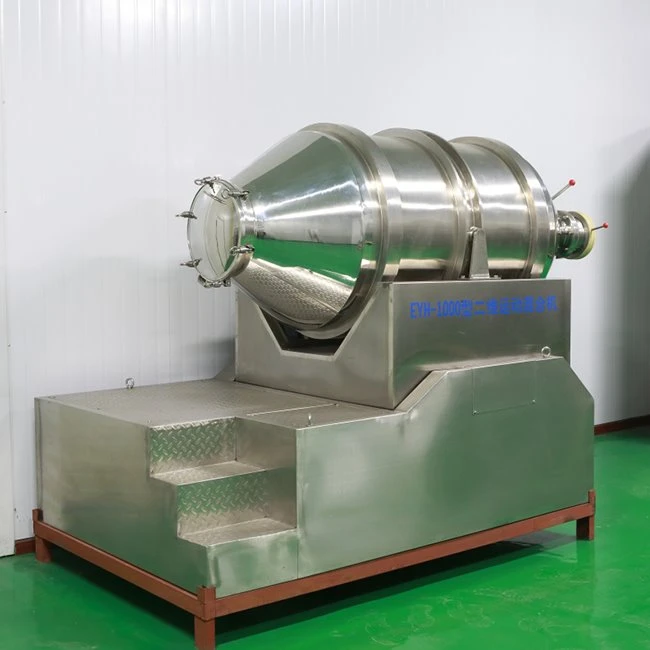

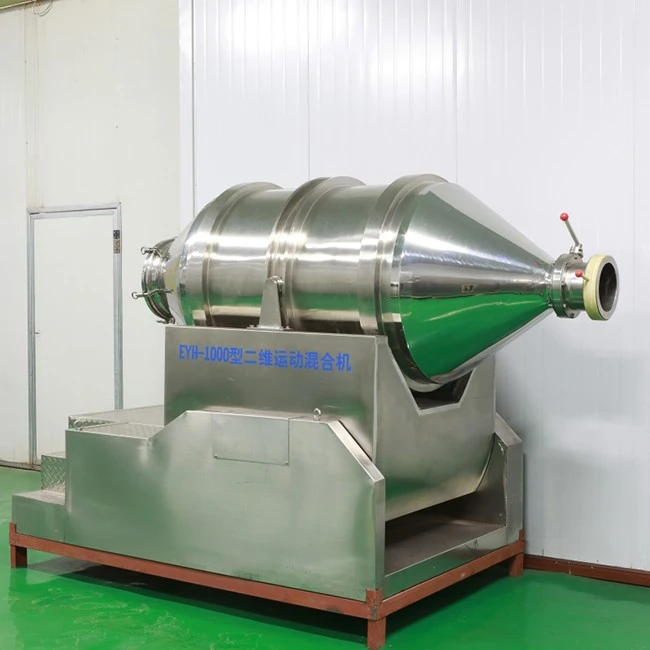

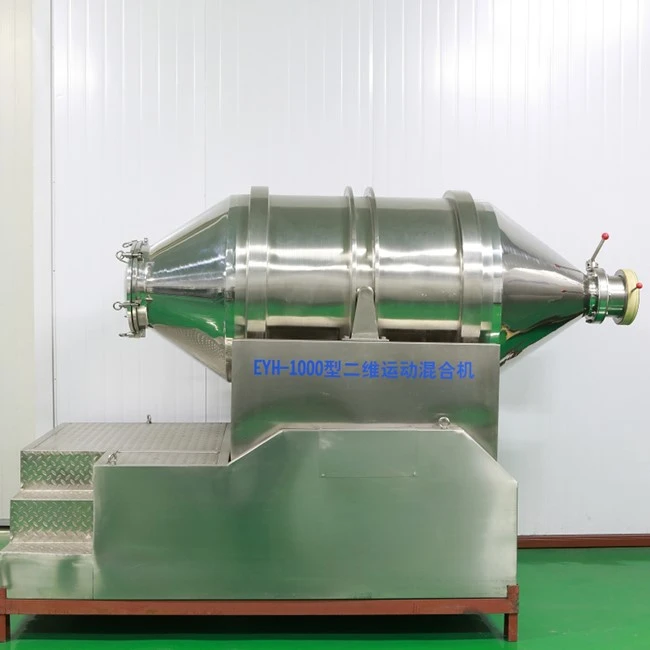

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of two-dimensional mixer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized two-dimensional mixer from our factory.
Main Features
Two-Dimensional Mixing
The drum rotates and swings at the same time. Materials are lifted, dropped, shifted, and redistributed during operation, helping reduce dead zones and improve batch consistency.
Gentle Material Handling
The mixer uses gravity-based movement without high-speed agitators or strong mechanical shearing. This helps protect fragile particles and crystalline materials from excessive breakage.
High Loading Efficiency
A typical loading coefficient of 50–65% allows a relatively large batch volume while maintaining effective material movement. It is suitable for routine and continuous production.
Clean and Easy to Maintain
Material-contact parts are made from 304 stainless steel, with 316L available for higher cleanliness requirements. The polished inner surface reduces material buildup and simplifies cleaning. A sealed butterfly valve supports clean and controlled discharge.
Simple Operation
The control system supports variable frequency speed adjustment and timed start/stop. The compact drive structure contains few wearing parts, helping reduce maintenance requirements.
Working Principle
The motor drives the horizontal mixing drum through a dedicated transmission system. During operation, the drum rotates continuously while swinging from side to side.
The combined movement causes the material to repeatedly lift, fall, slide, and change direction. Particles from different areas of the drum are continuously exchanged, gradually forming a uniform mixture without aggressive mechanical stirring.
Technical Parameters
|
Volume |
50–5000L |
|
Loading Coefficient |
50–65% |
|
Mixing Uniformity |
≥98.5% |
|
Speed |
5–18 rpm, variable frequency control |
|
Contact Material |
304 stainless steel, 316L optional |
|
Control |
Speed adjustment + timed operation |
|
Discharge |
Sealed stainless steel butterfly valve |
|
Suitable Materials |
Free-flowing powders and granules |
For materials with major differences in density or particle size, or applications requiring ultra-high uniformity, a 3D Mixer may be a better choice.
Customized Solutions
Capacity, stainless steel grade, control system, feeding method, surface finish, and discharge configuration can be customized according to the material and production process. Vacuum feeding, dust-free loading, spray systems, special voltage, and non-standard dimensions are also available.
The Two-Dimensional Mixer offers a practical combination of gentle mixing, good capacity, simple operation, and low maintenance for everyday industrial powder and granule processing.
