Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of steam heating vacuum drying oven in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized steam heating vacuum drying oven from our factory.
Main Components

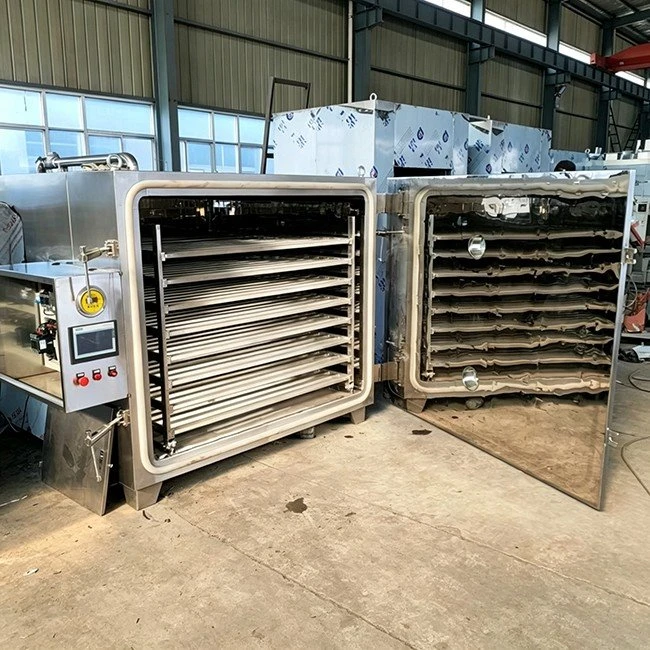

Vacuum Drying Chamber: Stainless steel chamber equipped with trays or shelves for batch processing.
Steam Heating System: Steam circulates through jacket or heating plates to transfer heat to loaded materials.
Vacuum System: Vacuum pump, piping and valves remove water vapour and sustain target pressure.
Control System: Adjusts temperature, vacuum pressure and drying time to meet process setpoints.
Features
Temperature can be regulated through steam heating for low-temperature vacuum drying. The unit processes heat-sensitive materials with consistent heat inside the chamber. Its stainless steel construction simplifies cleaning, while the closed drying circuit minimises air exposure. The Steam heating vacuum drying oven supports both batch production and laboratory trials. The chamber accepts custom tray layouts and matched vacuum assemblies.
Working Principle
During operation, operators load materials onto trays in the chamber. After door sealing, the vacuum system reduces internal pressure. Steam enters the heating jacket or plates and transfers heat to the material.
Moisture and solvents evaporate easily under reduced pressure. The vacuum system keeps extracting vapour from the chamber. Depending on the material and target residual moisture, operators adjust temperature, vacuum level and cycle duration.
Technical parameters
|
Temperature Range |
200°C |
Weight |
600g |
Customization Support |
Yes |
|
Power |
15kW |
Product Type |
Vacuum Type |
Vacuum Degree |
-0.098Pa |
|
Heat Transfer Area |
2-12㎡ |
Operation Method |
Intermittent Type |
power supply voltage |
380V 50Hz |
|
Dimensions |
1400*1350*1650mm |
Heating Method |
Steam heating |
Province Model |
FZG-48 |
Applications
This Steam heating vacuum drying oven works for pharmaceutical, food, chemical, agricultural and advanced new material industries, as well as laboratory use. It processes materials that degrade under high heat during dehydration. We supply different chamber volumes, heating areas, tray quantities, vacuum pumps and control hardware to satisfy production requirements.
