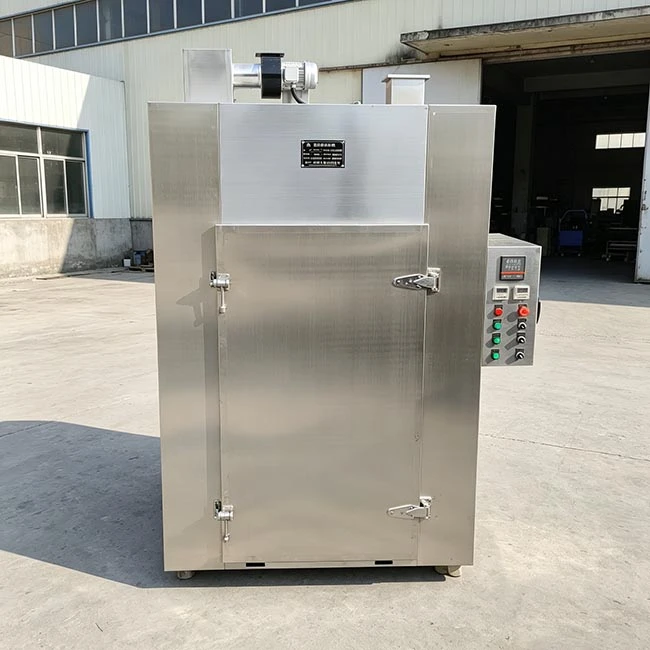

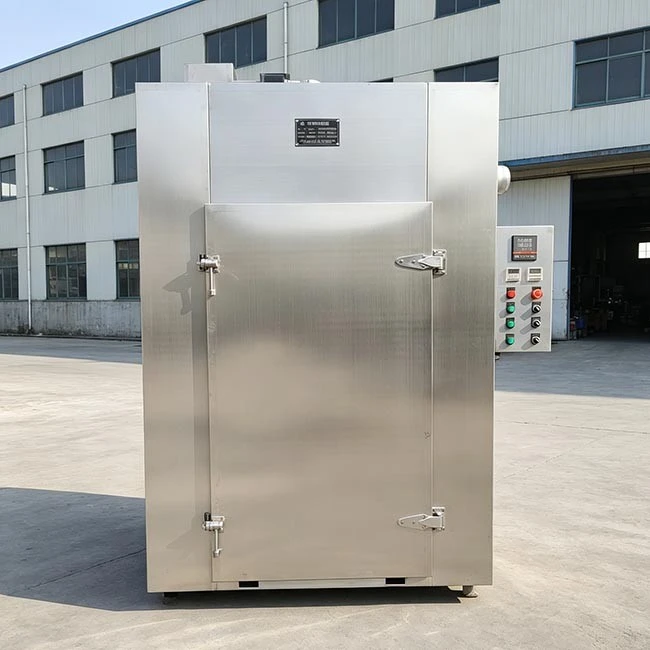

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of dual-fuel hot air circulating drying oven in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized dual-fuel hot air circulating drying oven from our factory.
Working Principle
Hot Air Circulation: Hot air is delivered into the oven chamber by a fan and evenly distributed through the air ducts, ensuring uniform heating of the materials.
Heating Method: The dual-powered (electric and steam) hot air circulating oven offers multiple heating methods for users to choose from, including steam heating and electric heating.
Circulation and Dehumidification: Most of the hot air returns to the fan inlet for continued circulation, while some humid air is discharged from the exhaust port, and fresh air is replenished through the air inlet.
Features
|
Heat Source Mode |
Heating Method |
Applicable Temperature Range |
Typical Scenarios |
|
Steam Heating |
Finned Radiator |
50-140℃ (maximum 150℃) |
Daily production, high-volume production, steam source available |
|
Electric Heating |
Stainless Steel Heating Element |
50-350℃ (up to 500℃) |
High-temperature processes, no steam source, backup |
|
Dual-Use Steam & Electric Heating |
Simultaneous operation |
Rapid heating across the entire temperature range |
Emergency production, rapid preheating |
Technical parameters
(Taking the CT-C series as an example)
|
Parameter Item |
Steam Heating Mode |
Electric Heating Mode |
Description |
|
Temperature Range |
50-140℃ (up to 150℃) |
50-350℃ (up to 500℃) |
Electric heating can reach higher temperatures |
|
Common Heat Source Pressure |
0.02-0.8MPa |
380V Three-phase Five-wire Low |
high steam pressure affects heat exchange efficiency |
|
Electric Heating Power Reference |
- |
CT-C-Ⅰ type approximately 15kw |
Practical power consumption 5-8kw (at constant temperature) |
|
Steam Consumption Reference |
CT-C-Ⅰ type approximately 18-20kg/h |
Increases with larger models |
|
|
Temperature Uniformity |
≤±2℃ |
≤±2℃ |
Forced circulation ensures |
|
Temperature Control Accuracy |
±1℃ |
±1℃ |
PID control |
|
Single Batch Processing Capacity |
24 trays/cart ~ 192 trays/8 carts |
Same as above |
Tray size uniform: 460×640×45mm |
Applications
Dual-fuel hot air circulating drying ovens have a wide range of applications, mainly suitable for heating, curing, drying and dehydrating materials and products in industries such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, heavy industry, and electronics.
