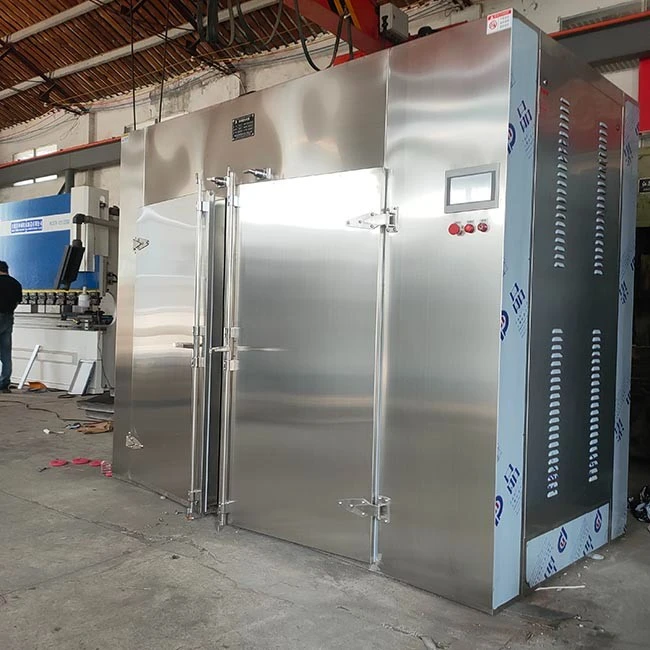

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of steam drying oven in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized steam drying oven from our factory.
Working Principle
The working principle of the steam drying oven is based on a combination of "forced hot air circulation + steam heat exchange":
Steam Input: An external steam pipe introduces saturated steam from a boiler into the finned radiator inside the equipment.
Heat Exchange: Steam flows within the radiator tubes, transferring heat through the finned tube walls to the cold air flowing outside. The steam itself condenses into water, which is discharged through a steam trap.
Hot Air Circulation: A high-temperature resistant axial flow fan delivers the heated air from the radiator into the air duct. After being evenly distributed by an adjustable air distributor, the air flows horizontally or vertically over the materials placed on the drying trays, undergoing heat exchange and removing moisture from the materials.
Circulation and Dehumidification: Most of the hot air returns to the fan inlet for continued circulation, while some humid hot air is discharged from the dehumidification outlet. Simultaneously, fresh air is supplied from the air inlet to maintain a suitable humidity level inside the steam drying oven.
Features
Low operating costs: Steam heat energy costs are far lower than electricity prices, making it suitable for continuous mass production; existing enterprise steam networks can be directly connected, resulting in extremely low marginal costs.
Temperature control capability: Standard temperature range 50-140℃ (maximum 150℃), with accuracy reaching ±1-2℃ when using a PID/PLC system; however, it is not suitable for high-temperature processes above 160℃.
Safety and compliance: No open flames or electric sparks, inherently safe; the inner chamber uses a stainless steel rounded corner design and is equipped with an H13 high-efficiency filter, eliminating dead corners and facilitating easy cleaning, fully complying with GMP verification requirements.
High efficiency and uniformity: Fully enclosed circulation achieves a thermal efficiency of 35-70%; forced circulation air combined with a distribution plate controls the temperature difference within the chamber to within ±2℃.
Technical parameters
|
Parameter Item Heating |
Typical Specifications |
Description |
|
Source |
Saturated Steam |
Also available: Electric, Far Infrared, or Steam-Electric Dual-Power. |
|
Operating temperature |
50-140℃ (maximum 150℃) |
Temperatures exceeding 140℃ require custom specifications |
|
Common steam pressure |
0.02-0.8MPa (0.2-8kgf/cm²) |
Low-pressure steam is sufficient |
|
Temperature uniformity |
≤±2.5℃ (typically ±2℃) |
uniformity guaranteed by forced circulation + air distribution plate |
|
Temperature control accuracy |
±1℃ |
via PID self-tuning control |
|
Fan Type |
Low-noise axial flow fan (CT-C type) |
Low noise, high thermal efficiency |
|
Enclosure Material |
Inner wall 304 stainless steel, outer wall/stainless steel |
316L optional for enhanced corrosion resistance |
|
Single batch processing capacity |
24 trays/cart, 48 trays/2 carts, 96 trays/4 carts, 144 trays/6 carts, 192 trays/8 carts |
Standard tray dimensions: 460×640×45mm |
|
Steam consumption |
CT-C-Ⅰ approx. 20kg/h, CT-C-Ⅱ approx. 40kg/h |
increases with larger models |
|
Control system |
Digital display instrument or touchscreen + PLC |
Data logging and remote monitoring optional |
Applications
Food Industry
The steam drying oven is widely used for drying and sterilizing bread, meat, etc.
Chemical Industry
Effectively prevents denaturation and clumping when processing resins, coatings, and other materials, improving production efficiency.
Pharmaceutical Industry
Ensures stable drying quality for pharmaceutical raw materials, fully complying with GMP standards.
