Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of electric constant temperature forced air dryer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized electric constant temperature forced air dryer from our factory.
Working Principle

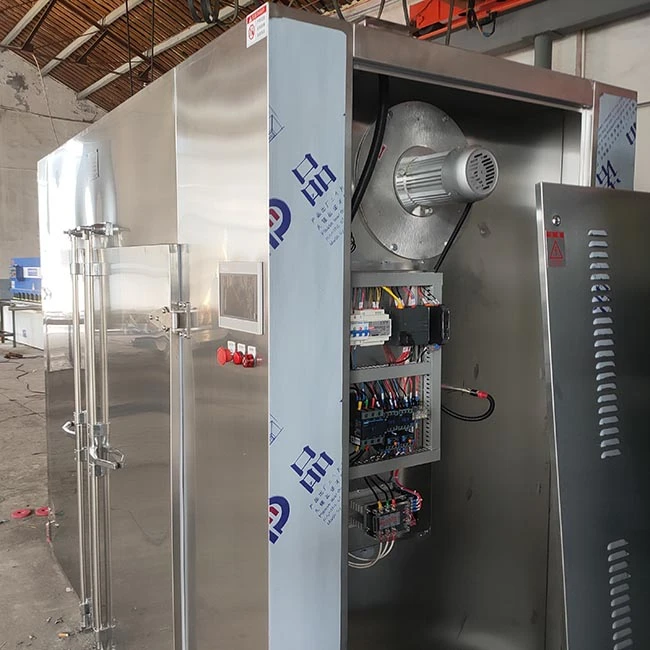

The electric constant temperature forced air dryer adopts the principle of forced convection heat transfer. Electrical energy is converted into heat energy through electric heating elements, and a centrifugal fan drives a uniform hot airflow. The hot air circulates within the oven, penetrating the material layer for efficient heat transfer. A high-temperature resistant filter ensures cleanliness. The temperature control system uses a PID algorithm with an accuracy of ±1℃. Some industrial models integrate a PLC module, supporting multi-segment programmed temperature rise.
Features
Clean Heat Source, Precise Temperature Control: Electric heating causes no pollution to the environment or materials. Combined with a PID intelligent temperature controller or PLC control system, it achieves temperature control accuracy of ±1-2℃ and supports multi-segment temperature programming.
Structural Design and GMP Compliance: The inner wall of the chamber is fully welded, with rounded transitions and no dead corners. Components can be quickly disassembled and assembled, meeting the cleanliness requirements for pharmaceutical production.
Uniformity and Efficiency: Uniform Temperature: Forced air circulation combined with an adjustable air distribution plate ensures minimal temperature difference throughout the chamber.
Safety and Filtration: Filtration System: High-efficiency filters can be installed at the air inlet and exhaust outlet to prevent external dust from entering and to prevent the leakage of pharmaceutical powder.
Technical parameters
|
Parameter Items |
Typical Specifications |
Description |
|
Heating method |
Electric heating |
Stainless steel heating element, power configuration varies depending on the model (e.g., 15kW, 27kW, etc.). |
|
Temperature range |
50-120℃ (standard), 50-350℃ (high temperature) |
Electric heating can reach higher temperatures. |
|
Temperature uniformity |
≤±2℃ |
Meets GMP requirements for drying uniformity |
|
Temperature control accuracy |
±1℃ |
PID self-tuning control |
|
Fan type |
High-temperature resistant axial flow fan (CT-C type) or centrifugal fan (CT type) |
The CT-C model has lower noise and higher thermal efficiency. |
|
Box material |
Inner wall 304 stainless steel, outer wall carbon steel/stainless steel |
316L is optional for enhanced corrosion resistance. |
|

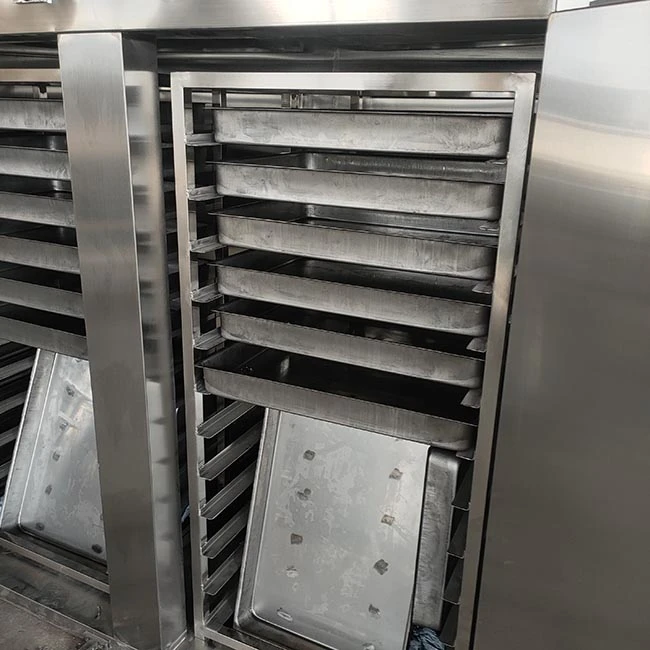

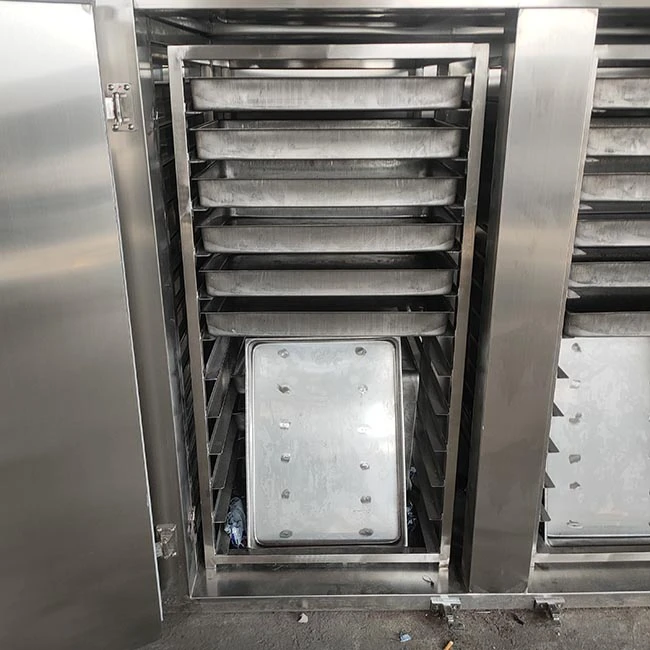

Single batch processing volume |
24 discs/cart, 48 discs/2 carts, 96 discs/4 carts, 144 discs/6 carts, etc. |
Baking trays are all the same size: 460×640×45mm |
|
Control system |
Touch screen + PLC (optional) or digital display instrument |
It can be equipped with data logging, remote operation and monitoring functions. |
Applicables
The electric constant temperature forced air dryer is widely used in many fields,including:
- Pharmaceutical Industry: Material drying, equipment sterilization.
- Food and Chemical Industry: Dehydrated vegetables, dried fruits, sausages, seasonings, etc.; drying of plastic resins, pigments, dyes, and chemicals.
- Others: Electronics, automotive parts, laboratories.
Selection Recommendations
- Is high temperature required? If the drying temperature exceeds 120℃, an electric heating type must be selected, as steam heating only reaches a maximum of around 150℃.
- Is it for pharmaceutical use? When used in pharmaceutical production, a model with a 304/316L stainless steel inner liner, rounded corners, and the option to equip it with a high-efficiency filter should be selected, meeting GMP validation requirements.
- What is the batch throughput? Select the appropriate number of drying carts based on the weight of the material to be dried in each batch.
- Is explosion-proof required? If the material contains flammable and explosive solvents (such as ethanol or acetone), ordinary electric heating ovens cannot be used; explosion-proof electric heating ovens must be selected, and an explosion-proof certificate must be obtained.
- Temperature control requirements? For general processes, manual temperature control with a digital display instrument is acceptable; if multi-segment temperature programming, data recording, and remote monitoring functions are required, a touchscreen + PLC control system should be selected.
