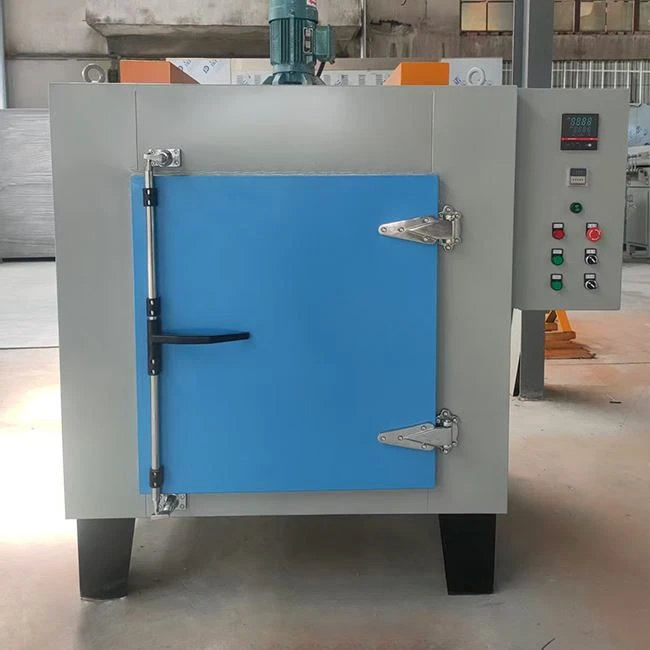

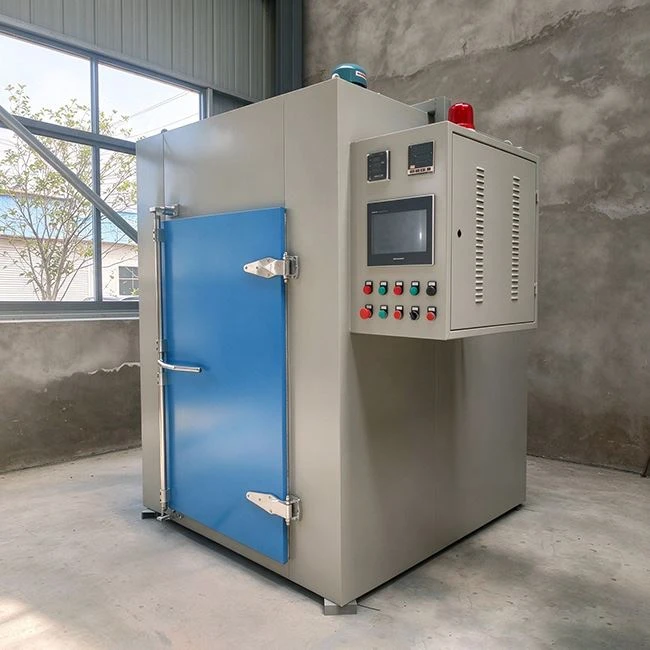

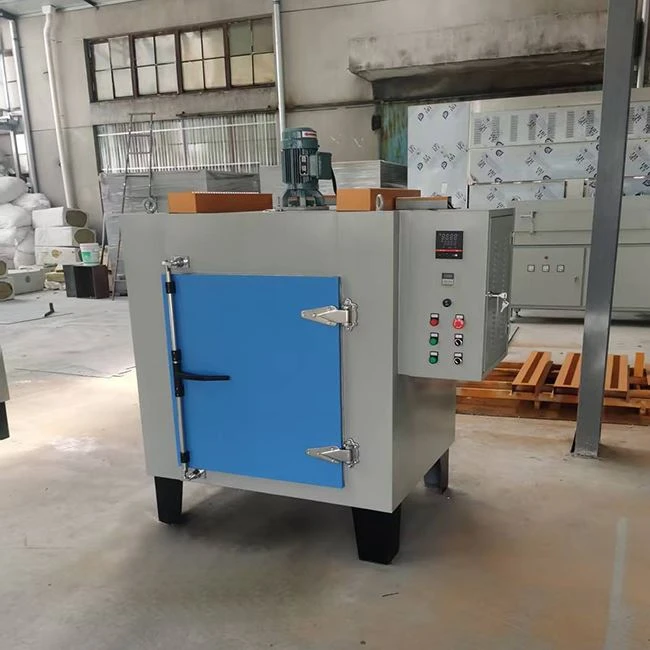

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of oil drum drying oven in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized oil drum drying oven from our factory.
Working Principle
The oil drum drying oven adopts the hot air circulation working principle. The top circulating fan exchanges heat with the heating elements in the top heating chamber. After being strongly compressed by the guide plate, the heat enters the air ducts on both sides of the drying oven and is then blown into the oven to exchange heat with the oil drum. After heat exchange, the air ducts are drawn back into the top heating air duct by the circulating fan, forming a continuous hot air circulation, which makes the oil drum evenly heated.
Features
Flexible choice of heat sources
Temperature control and homogeneity
|
Heat source type |
Characteristic |
Applicable scene |
|
Electrical heating |
Fast heating, precise temperature control, and easy installation |
No steam source required; suitable for small to medium batch production. |
|
Steam heating |
Low operating costs and intrinsic safety |
Already equipped with a steam pipeline network and capable of large-scale continuous production. |
|
Dual-purpose (gas-electric) |
Mutually redundant and highly flexible |
Scenarios with high requirements for production continuity |
Safety-optimized explosion-proof configuration
Technical Parameter
|
Parameter Item |
Ideal Format |
Explain |
|
Number of oil drums |
1 barrel, 2 barrels, 4 barrels, 6 barrels, 8 barrels, 9 barrels, 12 barrels, 16 barrels, 24 barrels, 32 barrels |
Customizable on demand |
|
Internal dimensions reference |
Single storage unit: approx. 1500 × 1500 × 1500 mm (for 4 tanks) |
Expands as the number of bucket positions increases |
|
Temperature range |
Room temperature–150 °C (standard) / Room temperature–250 °C (high-temperature) |
Special requirements can be customized |
|
Temperature uniformity |
≤±2.5°C (no-load condition) |
Ensures forced hot air circulation |
|
Temperature control accuracy |
±1℃ |
PID/SSR Control |
|
Heating power (electric) |
8 kW (1 barrel) – 50 kW (multiple barrels) |
Related to the number of tanks and the heating requirements |
|
Vapo tension |
0.02-0.8MPa |
Steam heating type |
|
Material quality |
Inner shell made of SUS304 stainless steel; outer wall coated with powder coating using carbon steel. |
Optionally available in 316L corrosion-resistant grade |
|
Control System |
Digital display instrument or touchscreen + PLC |
Supports optional multi-stage programming and data logging |
Applications
The main applications of oil drum drying ovens are as follows:
Chemical industry
Pre-treatment of metal containers for storing chemical raw materials
Petroleum industry
Corrosion-resistant coating processing of oil and gas storage and transportation containers
Food industry
Cleaning and disinfection of edible oil packaging containers
Pharmaceutical industry
Aseptic treatment of pharmaceutical raw material packaging containers
