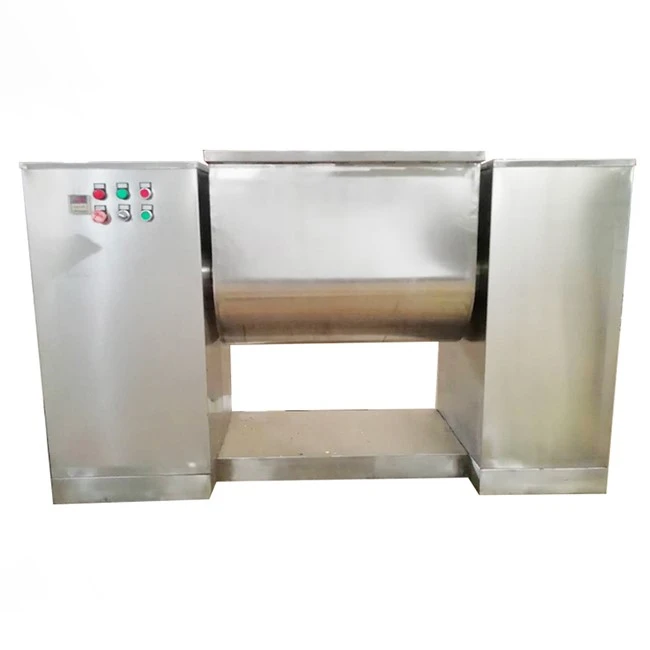

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of trough mixer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized trough mixer from our factory.
Main Components

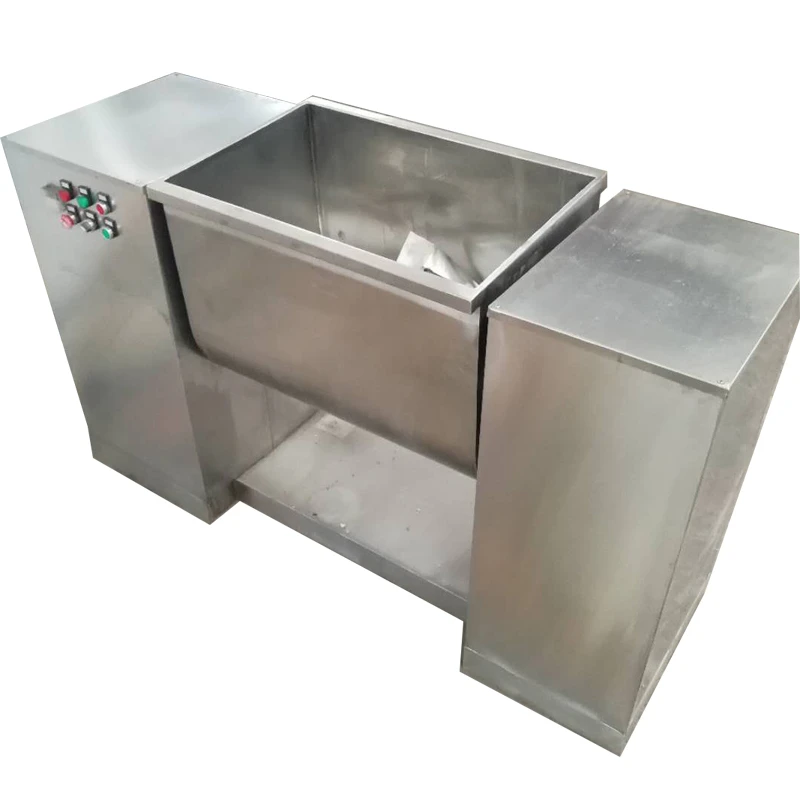

U-Shaped Mixing Trough
The trough is made of 304 or 316L stainless steel, with rounded inner corners. The smooth interior surface helps reduce material adhesion and residue, making routine cleaning and batch changeover easier.
Mixing Blade Assembly
The unit is fitted with U-profile mixing blades. During operation, the blades lift, turn, and circulate material inside the trough. This mechanical agitation allows the mixer to handle materials that cannot be blended effectively by gravity tumbling alone.
Variable-Speed Transmission Unit
The trough mixer is driven by a high-torque geared motor. It provides stable power output for viscous and damp materials. A variable-frequency drive can be used to adjust rotation speed according to process requirements.
Tilt-Discharge Setup
Manual or motorized tilting discharge is available. The trough can tilt to a large angle, which helps improve discharge efficiency and reduce material residue inside the cavity.
Shaft Sealing and Control Cabinet
The shaft sealing structure helps reduce material leakage during operation. The control cabinet supports timed mixing, speed adjustment, and standard start–stop operation for batch production.
Features
- Suitable for moist powders, pastes, sticky materials, and solid–liquid mixtures
- Recommended filling ratio: 50%–75%, depending on material and mixing process
- Stainless-steel trough with polished inner surface for easier cleaning
- Stable operation under heavy-load and high-viscosity conditions
- Can be used for dry mixing, wet mixing, powder wetting, and pre-mixing
Working Principle
During operation, the drive motor rotates the U-shaped mixing blades at an adjustable speed. The blades move the material along the trough while also circulating it from the center to the sides.
Wet agglomerates and sticky materials are gradually broken up and redistributed. Liquid components are evenly incorporated into the solid material, producing a uniform mixture. The mixer is suitable for damp, sticky, and poor-flowing materials that are difficult to process in conventional tumble mixers.
Technical Parameters
Taking the CH-500L trough mixer as an example:
|
Volume |
500L |
|
Agitator motor power |
7.5KW/380V |
|
Discharge motor power |
2.2KW/380V |
|
Agitator speed |
24r/min |
|
Discharge angle |
105° (adjustable) |
|
Dimensions |
2100×800×1420mm |
Applications
The trough mixer can be used for wet blending and pre-processing in various industries:
- Pre-granulation wet mixing (pharmaceutical)
- Raw-material compounding and paste preparation (food)
- Slurry and adhesive preparation (chemical)
- Pesticide and veterinary product compounding
- Cosmetic raw-material preparation
- Detergent manufacturing
- Moisturizing pre-treatment for powder materials
