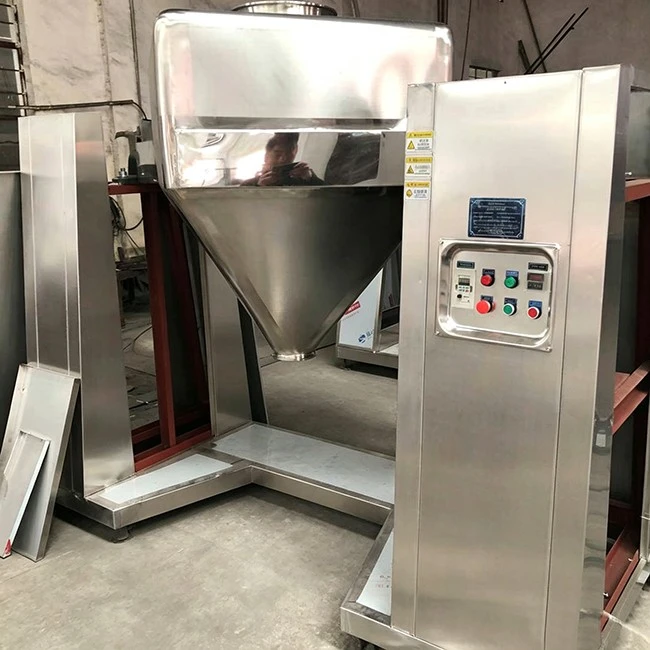

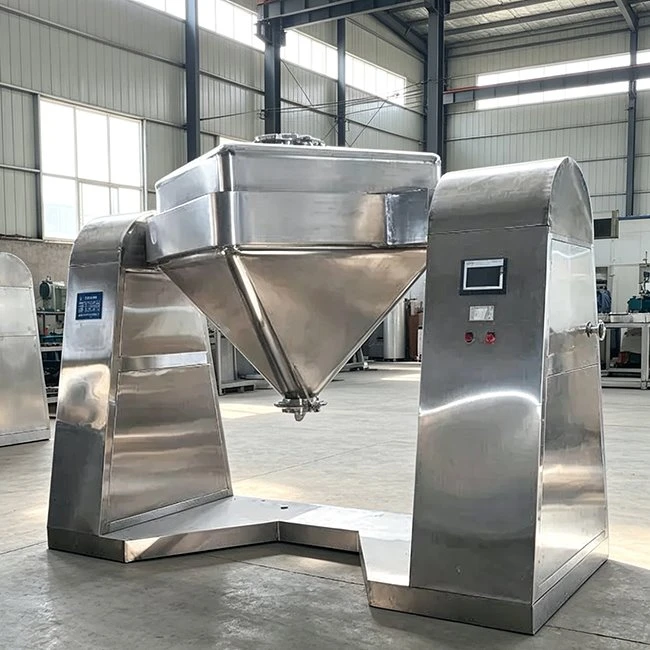

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of explosion proof mixer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized explosion proof mixer from our factory.
Main Components
Drive System
The Explosion-Proof Mixer supports two drive forms for different safety grades. Pneumatic drive is available for working conditions that prohibit electric equipment. Flameproof motors and certified drive parts are configured for standard industrial production to avoid electric ignition sources.
Electrical Protection Structure
Switches, sensors and control units adopt explosion-proof certified components suitable for hazardous area classification. The control zone can be structurally separated from the material processing zone, isolating electrical parts from flammable materials.
Static Control Structure
The Explosion-Proof Mixer body, pipelines and all conductive parts are equipped with reliable grounding connections. Anti-static accessories can be installed on demand. These structures dissipate static charges generated during feeding, material flowing and mixing, and reduce electrostatic discharge risks.
Mechanical Safety Structure
Moving parts are made of low-spark materials. Assembly clearance between mixing components and tank wall is standardized. This structural design reduces friction and collision during operation, lowering mechanical spark risks.
Pressure Relief Device
Pressure relief panels and auxiliary pressure relief devices can be installed according to process requirements. When abnormal pressure occurs inside the sealed tank, these devices release pressure in a controlled manner to stabilize internal working conditions.
Configurable Mixing Chamber
The mixing chamber supports multiple structural forms, including V-type, 3D, ribbon and trough. Users can select the corresponding structure according to material property, mixing uniformity requirement, batch volume and production workflow.
Working Principle
Mixing modes vary with equipment structure. V-type and 3D mixers realize material blending through rotary and multi-directional flipping movement. Ribbon and trough mixers complete uniform mixing by mechanical conveying, material convection and internal circulation.
During operation, all explosion-proof safety structures work cooperatively. Grounding system controls static accumulation, explosion-proof electrical parts adapt to hazardous zones, optimized mechanical structure reduces friction hazards, and pressure relief devices cope with abnormal working pressure. The whole mixing process is completed in a closed and controllable environment to restrain dust diffusion.
Features
The Explosion-Proof Mixer is structurally adapted for flammable powders, combustible dust and materials containing volatile solvents. Drive mode and explosion-proof configuration can be flexibly matched according to on-site safety classification. Optimized mechanical and electrical structures reduce common ignition hazards in powder processing.
It supports processing of dry powders, granules and individual slightly wet materials. Multiple mixing structures are optional to meet different batch volumes and mixing precision requirements. The overall configuration can be adjusted to adapt to different workshop safety standards.
Applications
Different structural models correspond to different processing scenarios. Explosion-proof V-type mixers apply to low-shear gentle blending of free-flowing flammable powders and granules. Explosion-proof mixers are used for production requiring high mixing uniformity. Explosion-proof ribbon mixers adapt to large-batch powder circulation mixing. Explosion-proof trough mixers are suitable for powders, granules and low-viscosity slightly wet materials.
Typical applicable industries include fine chemicals, pharmaceutical intermediates, coatings, inks, new energy materials, pesticides and veterinary products. The equipment covers all production processes involving combustible dust and volatile solvent materials.
Final explosion-proof configuration is determined by material property, solvent composition, dust explosion risk, hazardous area classification and local safety specifications. Component selection and certification grade shall match actual installation and market access requirements.
