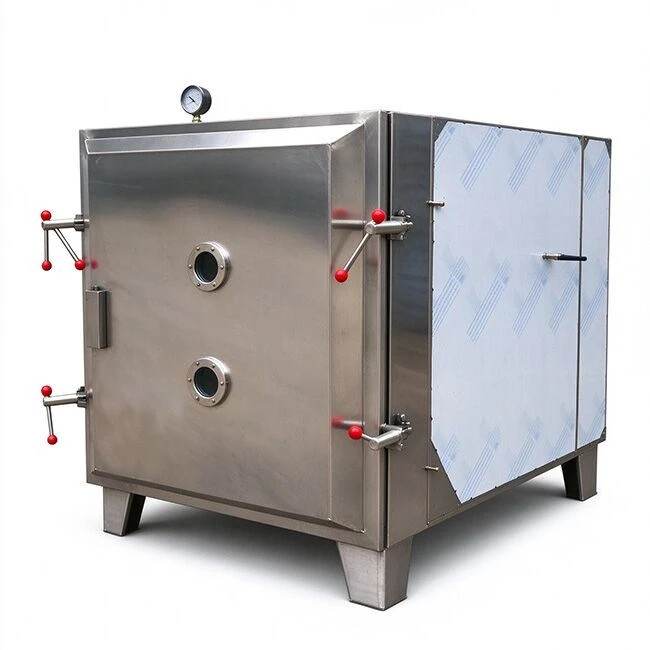

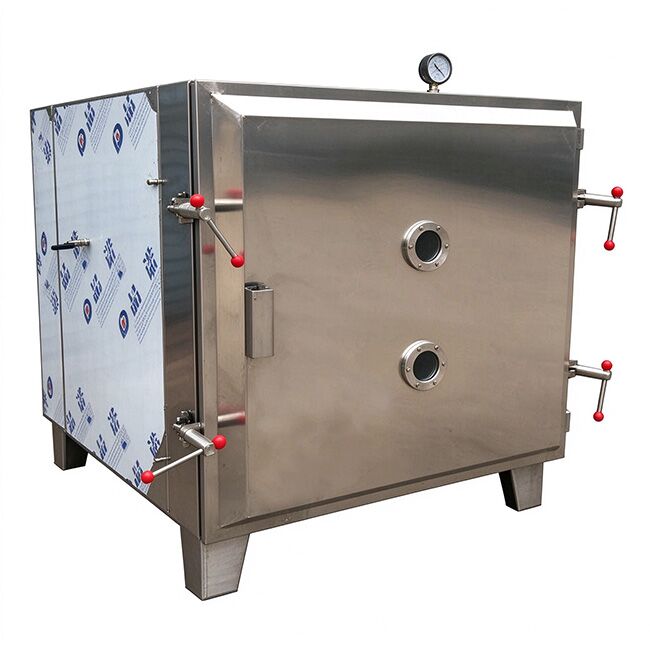

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of low-temperature vacuum drying oven in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized low-temperature vacuum drying oven from our factory.
Features
High efficiency and energy saving, high thermal efficiency: The thermal efficiency of the low-temperature vacuum drying oven is more than twice that of ordinary ovens. Simultaneously, by utilizing vacuum to lower the boiling point of materials, rapid drying can be achieved at lower temperatures.
Precise temperature control: Equipped with an automatic constant temperature control system, the temperature adjustment range is wide, meeting the drying needs of various substances, with a temperature control accuracy within ±2℃.
High material purity, no contamination: Indirect heating eliminates the risk of material contamination.
Easy maintenance: The electric heating system has a simple structure; replacement of damaged heating elements is convenient, and there is no risk of leakage or spillage contaminating materials.
Working Principle
The vacuum negative pressure environment lowers the boiling point of liquids, combined with inert gas protection technology to achieve low-temperature, high-efficiency drying, effectively preventing material oxidation or component damage.
Water boils at 100℃ under normal pressure. The higher the vacuum level, the lower the boiling point, enabling low-temperature drying suitable for heat-sensitive materials.
Air is extracted from the chamber, resulting in extremely low oxygen content, preventing the deterioration of easily oxidizable materials.
The heating system is auxiliary: it only provides the latent heat required for moisture vaporization, without relying on high-temperature convection drying.
Equipment Parameter
|
Model |
External dimensions D×W×H(mm) |
Studio size D×W×H(mm) |
Heating power kw |
Number of baking trays |
Baking tray size(mm) |
vacuum degreeMpa |
Operating temperature ℃ |
|
FZG-8 |
1120×1180×1250 |
850×1000×650 |
6 |
8 |
640×460×45 |
-0.1 |
120 |
|
FZG-16 |
1050×1180×1480 |
850×1000×1200 |
12 |
16 |
640×460×45 |
-0.1 |
120 |
|
FZG-24 |
1260×1540×1480 |
1220×1380×980 |
12 |
24 |
640×460×45 |
-0.1 |
120 |
|
FZG-32 |
1380×1520×1700 |
1220×1380×1230 |
16 |
32 |
640×460×45 |
-0.1 |
120 |
|
FZG-48 |
1650×1660×1760 |
1490×1480×1230 |
24 |
48 |
640×460×45 |
-0.1 |
120 |
|
FZG-60 |
1650×1660×1850 |
1490×1480×1450 |
30 |
60 |
640×460×45 |
-0.1 |
120 |
|
FZG-72 |
1720×1700×1980 |
1490×1480×1620 |
36 |
72 |
640×460×45 |
-0.1 |
120 |
|
FZG-96 |
1720×2160×1980 |
1490×1940×1620 |
42 |
96 |
640×460×45 |
-0.1 |
120 |
Applications
Low-temperature vacuum drying ovens are widely used in research and application fields such as biochemistry, chemical pharmaceuticals, medical and health care, agricultural research, and environmental protection. They are used for powder drying, baking, and sterilization of various glass containers. They are particularly suitable for the rapid and efficient drying of heat-sensitive, easily decomposed, easily oxidized substances and items with complex compositions.
