Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of sugar pulverizer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized sugar pulverizer from our factory.
Features
Anti-Adhesion and Stable Material Flow Aimed at humid workshop environments and moisture-prone sugar materials, the chamber structure and blade layout are both optimized to minimize material sticking and accumulation. It effectively solves unstable feeding and intermittent discharging caused by sugar caking, maintaining continuous and smooth production.
Flexible Particle Size Adjustment Finished fineness can be flexibly switched by replacing different screen specifications. The final crushing effect is determined comprehensively by sugar type, original feeding particle size, material moisture, blade arrangement and screen aperture, meeting diversified fine particle requirements for different production processes.
Standardized Food-Grade Structure All material-contact parts adopt 304 stainless steel sanitary configuration. The smooth inner wall leaves almost no residual powder after production. Batch cleaning and material replacement are convenient, effectively preventing cross-contamination and complying with food and pharmaceutical production specifications.
Fully Enclosed Dust-Free Crushing The closed crushing cavity completely wraps the whole crushing process, avoiding material splashing and floating dust diffusion. The discharge end can be directly connected with downstream conveying and feeding Sugar Pulverizer to form a fully closed production link, improving overall workshop sanitation and production standardization.
Working Principle

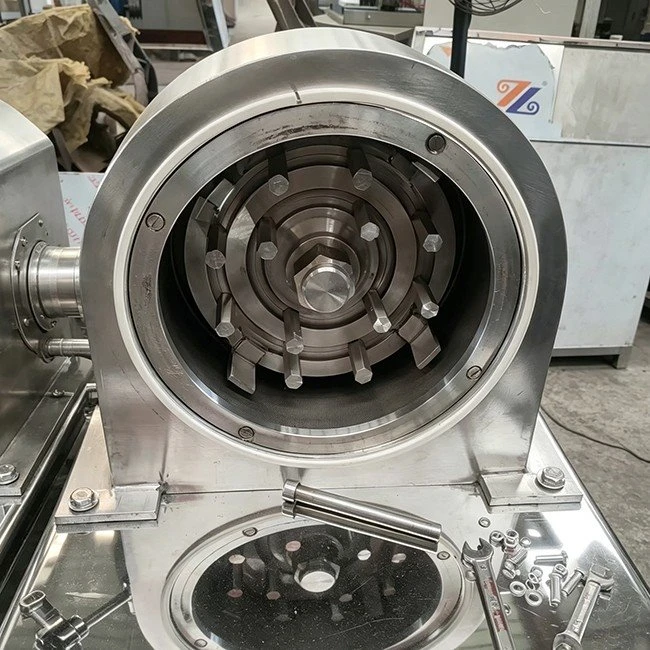

After sugar raw materials enter the crushing chamber from the feeding port, high-speed rotating blades apply continuous cutting, impact and friction force to break lump and granular sugar materials. Under airflow and gravity circulation, fine qualified particles move toward the bottom screen and discharge out of the Sugar Pulverizer. Larger uncrushed fragments remain in the high-speed crushing area for repeated processing until they reach the qualified particle size. The final crushing quality is affected by screen selection, feeding speed and actual material moisture status.
Parameter Reference
Common models available on the market cover a wide range of specifications, spanning from laboratory use to mass production.
|
Range of models |
Production Capacity (kg/h) |
Finished product fineness (mesh) |
Motor Power (KW) |
Features Overview |
|
WF-20B / 30B models |
60 - 300 |
20 - 120 |
4 - 5.5 |
High versatility; compatible with water-cooled jacketing; suitable for small to medium batch production where self-cooling functionality is prioritized; specifically designed for sugar crushing applications. |
|
WF-40B / 60B models |
160 - 1500 |
20 - 120 |
7.5 - 18.5 |
It offers high production capacity, often integrates a dust removal system, and is well-suited for mass production. |
Note: The above production capacities are for reference only; they may vary depending on factors such as the moisture content of the materials and operating conditions. When selecting a model, it is recommended to confirm with the manufacturer based on your specific requirements.
Applications & Selection Notes
This Sugar Pulverizer is suitable for various sugar raw materials including white sugar, brown sugar, rock sugar and other industrial crystalline sugars. It covers multiple application scenarios such as food ingredient processing, beverage production, pharmaceutical excipient preparation, confectionery manufacturing and daily chemical processing.
Since high-moisture and strongly sticky sugar materials will affect crushing efficiency and finished effect, it is recommended to complete material testing before formal equipment selection. According to actual material characteristics, configure the most suitable blade combination, screen aperture and supporting auxiliary devices to ensure stable and compliant production.
