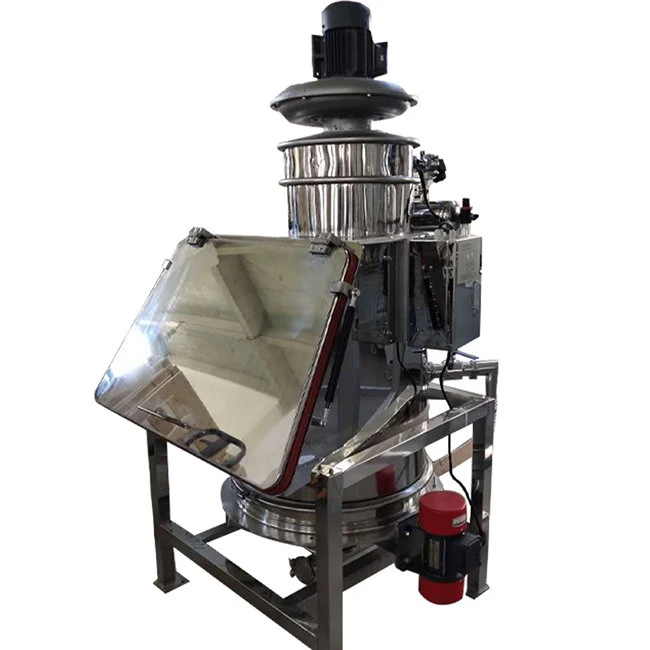

Explosion-Proof Feeding Station

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of explosion-proof feeding station in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized explosion-proof feeding station from our factory.

On-Site Working Process



During actual production operation, workers place material bags above the hopper and complete opening and dumping work. Once feeding starts, the internal dust suction system activates synchronously. Real-time negative pressure captures floating fine dust generated in the feeding area, preventing outward diffusion. Inside the equipment, filter components separate powder materials from air flow, retaining valid materials while exhausting clean air. For long-time continuous operation, the optional pulse back-blow structure cleans filter surface adhesion dust at fixed intervals, avoiding filter blockage and stable dust suction attenuation. All static conduction and grounding structures keep running throughout the whole process to eliminate static buildup. Processed materials steadily fall through the bottom discharge port into downstream supporting equipment, realizing continuous, closed and safe manual feeding circulation.

Specific Equipment Configuration



All matching parts are optimized for flammable and explosive material processing. The power and control parts adopt certified explosion-proof electrical components. For sites that prohibit electrical facilities, full pneumatic matching schemes can be replaced to completely avoid electric spark risks. The whole Explosion-Proof Feeding Station is equipped with a complete grounding loop and conductive connecting components, which can continuously release static electricity generated by material friction and equipment contact.

The filtering part adopts professional anti-static filter media, specially used for intercepting combustible floating dust and preventing secondary dust flying. The feeding hopper adopts integral polishing smooth structure with no obvious dead corners, reducing material residue and adhesion. Multiple hopper specifications and discharge calibers are reserved, which can be matched according to on-site bag size, feeding volume and supporting mixer or vacuum conveyor models. The overall structure is simple and detachable, facilitating daily cleaning, material replacement and routine maintenance.

The following is reference information for currently available explosion-proof dust-free feeding stations.:

Please note: The above capacity and prices are theoretical reference values ​​published by each manufacturer. Actual values ​​are affected by factors such as material characteristics and feeding efficiency. The selection should be confirmed with the manufacturer.

This Explosion-Proof Feeding Station is widely deployed in production links requiring manual dumping of combustible powder and granular materials. It covers fine chemical production, pharmaceutical intermediate processing, new material functional powder processing, pesticide preparation and general industrial powder processing fields. It is suitable for all working conditions where dust is easy to fly and static explosion risks exist during feeding.

The equipment effectively reforms traditional open feeding modes, improves workshop cleanliness, and eradicates potential safety hazards in manual operation. It can form a closed automated feeding system with follow-up processing equipment, helping high-risk production enterprises achieve standardized, compliant and stable long-term production.

All explosion-proof and safety configurations are not fixed in a single standard. The final matching scheme is formulated based on actual on-site conditions, including material flammability, particle fineness, dust explosion characteristics, workshop hazardous area classification and local industrial safety specifications.

According to different application scenarios, the Explosion-Proof Feeding Station can be flexibly equipped with explosion-proof electrical systems, anti-static filter elements, complete grounding and bonding structures, anti-static conveying pipelines and dust pulse cleaning devices. All configurations focus on eliminating ignition sources and controlling dust concentration from the physical structure, ensuring that the equipment can operate safely and stably in corresponding high-risk environments.
