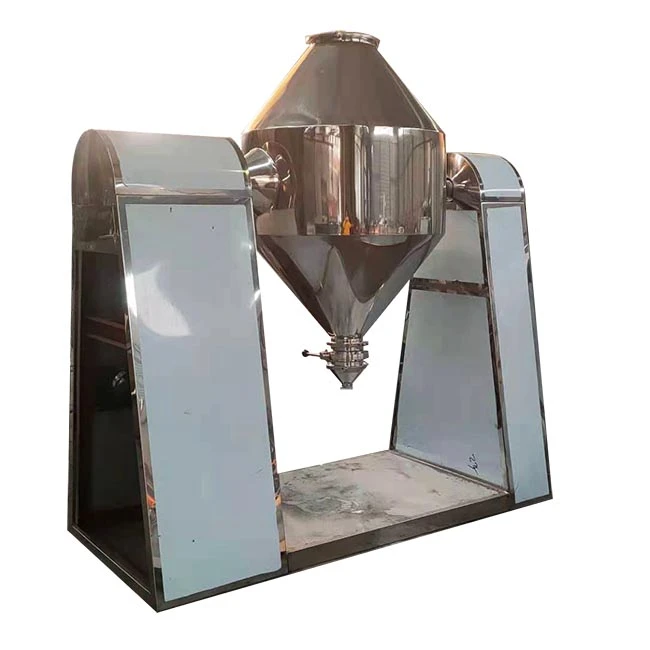

Nanjing Huozao Machinery Technology Co., Ltd. is one of the leading manufacturers and suppliers of double cone rotary vacuum dryer in China. With abundant experience, we are committed to providing high quality equipment made in China with competitive price. Welcome to wholesale customized double cone rotary vacuum dryer from our factory.

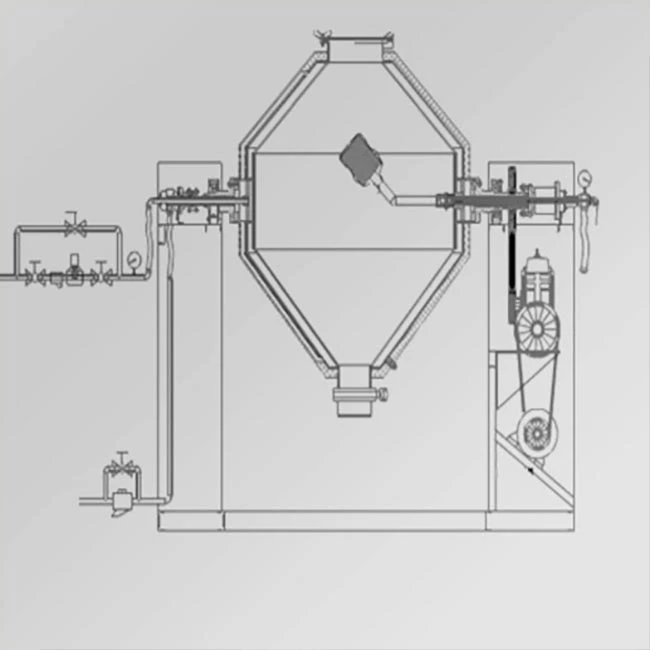

Working Principle
After the material is loaded, the chamber is sealed and vacuum is applied to reduce the evaporation temperature of water and solvents. Heat transfer oil, steam, or hot water circulates through the jacket to provide uniform heating.
During operation, the double-cone chamber rotates slowly, continuously lifting and mixing the material. This movement improves heat transfer efficiency and prevents uneven drying or material clumping. The generated vapor is removed through the vacuum system, condensed, and recovered for further use.
The process continues automatically until the required moisture level is reached.
Features
Low Temperature Drying
Vacuum drying allows materials to be processed at lower temperatures, helping maintain their original properties, color, and quality.
Uniform Drying Performance
The rotating design provides complete material mixing, eliminating dead zones and reducing problems such as uneven moisture content and surface hardening.
Closed and Safe Operation
The fully enclosed system reduces dust emissions, prevents contamination, and supports solvent recovery for safer and cleaner production.
Drying and Mixing Combined
The equipment can complete drying and mixing in one process, reducing production steps, equipment costs, and factory space requirements.
Stable Operation and Easy Maintenance
The simple mechanical structure, reliable drive system, and automatic control reduce maintenance needs and improve service life.
Intelligent Control System
The PLC touchscreen control system allows easy adjustment of drying temperature, vacuum pressure, rotation speed, and operating time for automatic production.
Customized Solutions
We provide customized Double Cone Rotary Vacuum Dryers from 50L to 5000L according to different production requirements.
Options include explosion-proof design, nitrogen protection system, special polishing treatment, anti-sticking devices, customized heating methods, and different installation solutions.
With reliable performance, flexible configuration, and energy-efficient operation, the Double Cone Rotary Vacuum Dryer is an ideal solution for modern industrial drying applications.
